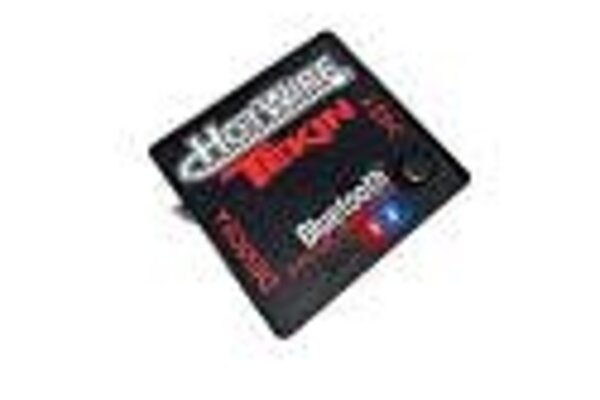

TEKTT1452 Tekin Hotwire 3.0 Bluetooth USB Interface ESC Programmer

0 reviews

Add your review

TEKTT1452

Hotwire 3.0 Bluetooth - ESC Programmer

TEKTT1452 Hotwire 3.0 Bluetooth - ESC Programmer

Brand:

Tekin

Availability: In stock

TEKTT1452

Hotwire 3.0 Bluetooth - ESC Programmer

Unlock the full potential of your Tekin speed control with the HotWire 3.0, connect to a host of devices running Windows, Android and Apple Operating Systems via secure Bluetooth technology and leverage the processing power of these devices to fine tune performance. The HotWire provides access to additional tools such as data logging, adjustable high-voltage BEC settings and many more in-depth tuning options. The HotWire also lets you network with other users to share tuning tips and entire track/condition specific profiles with friends. Team Driver setup files are available to all, right off the Tekin website! Best of all, the HotWire lets you download completely new software as it is developed and upload the newest firmware to your speed control - you get unrestricted access Tekin's latest and newest performance mods!

HotWire V3.0 Connects to:
Windows USB: All Tekin ESCs* All Tekin Servos*
Android USB: All Tekin ESCs*
Android Bluetooth: GEN2 & UP ESCs
Apple iOS Bluetooth: GEN2 & UP ESCs
The HotWire V3.0 can connect via Windows USB to program Tekin Servos and all Tekin ESCs*. It can also connect to GEN2 & UP ESCs with a Data Port via Bluetooth on most Android and iOS devices, see below for minimum device requirements.
*TT3848 HotWire 3.0 Adapter Cable included! Allows you to connect to Tekin Servos and Tekin ESCs through the receiver plug.

Features:

Connect via PC, Netbook, Android and iOS Devices
Connect to Tekin ESCs via Bluetooth and USB connection
Connects to all Tekin GEN2+ ESCs with EZ Data Port
Connects to Tekin Servos with TT3848 Adapter (included)
Quick and Easy Installation
Option to Leave Installed in Vehicle
Make ESC Adjustments on-the-fly without touching your vehicle
Connect Multiple HotWire 3.0 Devices
Datalogging Capabilities
LED Status Indicator
USB Cable Included
Free HotWire Software and ESC/Servo Firmware updates
180-Day Factory Warranty
Lifetime Support
Access to Team Driver Speed Control Profiles
Create, Download and Share Custom Speed Control Profiles

Specifications:

Part #: TT1452 HotWire V3.0
Dimensions: 1.02 x 0.93 x 0.38" / 26 x 23.75 x 9.75mm
Weight: .30oz / 8.4g

ESC Programmable Features*

Update ESC Firmware
?Create, Save, Load and Share Custom ESC Profiles
Drag Brake (0-100 steps)
Brake Strength (0-100 steps)
Brake Minimum (0-30 steps)
Active Drag (ON/OFF)
Active Braking (0-6 steps)
Brake Frequency (750hz - 12kHz)
RPM Intelligent Brake Strength (0-10steps)
Throttle Minimum (0-30 steps)
Throttle Frequency (2kHz - 12kHz)
Torque Limiter (0-10 steps)
Reverse Speed (0-100 steps)
Reverse Delay (0-2seconds)
Neutral Width (0-100 steps)
Push Control (0-100 steps)
Timing Profiles 5 Preset - 2 Custom
Locked Spec Mode
Boost (0-55 steps)
Boost RPM Range (user programmable)
Turbo (0-50 steps)
Turbo Delay (0-2seconds)
Turbo Ramp (1-10 steps)
Sensored Only Mode
Dual Drive Mode
Brushless Modes - FWD Only / FWD-REV / FWD-REV Delay / REV Motor Rotation
Brushed Modes - FWD Only / FWD-REV / FWD-REV Delay
Voltage Cutoff - 2S, 3S, Custom Per Cell
1S LiPo Mode

*Comprehensive list of features, not all are available on every Tekin ESC. Refer to each ESC product page Features section for list of settings available.

Servo Programmable Features
