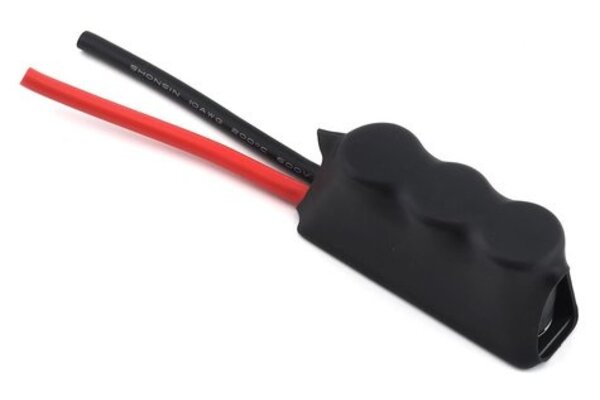

Team Brood TBR-CAPBANKXL Team Brood "XL" No Prep Drag Low ESR Capacitor Bank (Extra Capacity)

SKU: TBR-CAPBANKXL
$39.99
Excl. tax

Team Brood "XL" No Prep Drag Low ESR Capacitor Bank (Extra Capacity)

The rating of this product is 0 out of 5

(0)
On backorder

The Team Brood "XL" No Prep Drag Low ESR Capacitor Bank was designed specifically for 2s No-Prep Drag Racing. Cap Packs are beneficial as they help to protect the ESC from ripple voltage during hard acceleration. Ripple voltage is hard on the ESC, and an additional capacitor pack helps reduce the load on the capacitors in the ESC, and extend their lifespan.

These capacitor banks feature three 4700uf 35V capacitors on custom made circuit boards - no bread boards here! Large solder tabs allow you to solder on different lengths or gauges of wire, while replacement heatshrink is also available.

NOTE: These should be installed as close to the battery terminals on the ESC as possible. If you can solder it directly to the post, even better.

While all three packs will work in any No Prep setup, Brood recommends the following:
  • 2.0T-3.5T Cap Bank XL
  • 4.0T-13.5T Cap Bank
  • 4.0T-13.5T Cap Bank Micro
Specifications:
Capacitance Rating: 14100 uF (x3 4700uf)
Voltage Rating: 35v
Ripple Current @ Low Frequency Rating: 4.76 Amps @ 120Hz per capacitor
Ripple Current @ High Frequency Rating: 5.60 Amps @ 100kHz per capacitor
ESR Rating: 22 mOhm per capacitor
Temperature Rating: 135 C
Wire Size: 3 Inches 10 AWG
Dimensions (Does NOT include Wire)
Length: 73mm
Width: 24.5mm
Height: 34mm
Weight: 66 Grams (Includes Wire)
