SEHREEFS146

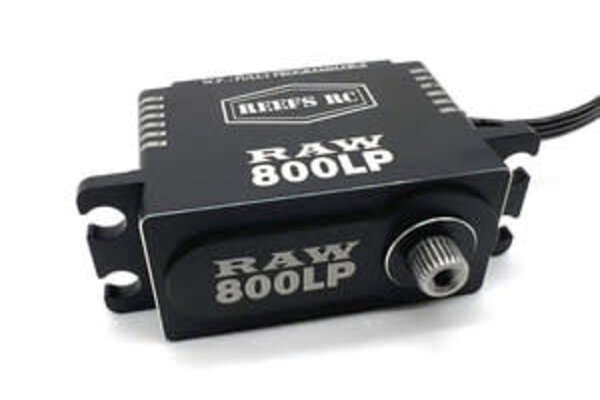

RAW 800 LP Black Servo, Programmable

Features:

• Fully Programmable
• High Torque High Speed
• 4 POLE - Brushless Low Pro Servo
• SUBMARINE WATERPROOF: 7 Point Seals
• Magnetic Angle Sensor
• Voltage 4.8V - 8.4V
• REEFS LINK required for Programming (Optional)
• Internal: Steel Gears
• CNC Aluminum Casing
• Bearing Type: 2 Ball Bearings
• BEC Not Req. Recommended for max performance

Specifications:

• Weight: 2.3oz / 66gm
• Dimension LWH: 1.6 x .79 x 1.16 / 40.8x20.2x29.5mm
• Torque: 635oz @ 6v/ 715oz @7.4v/ 800oz @8.4v
• Speed: .12sec @6v/.10sec @7.4v/.09sec @8.4v
• Spline: 25T / Dead Band Width: 2µs
