SEHREEFS129

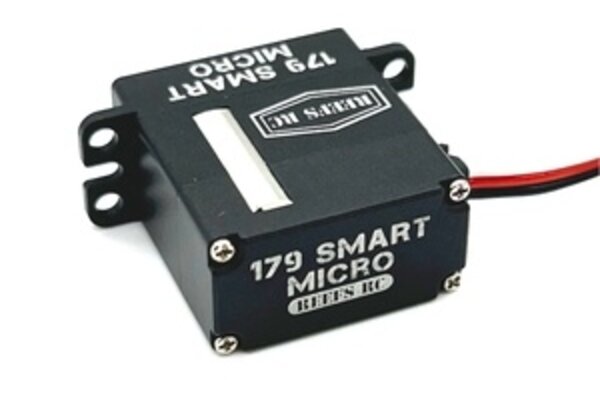

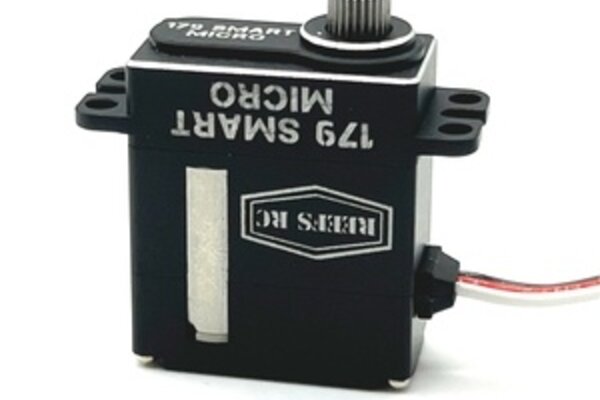

179 SMART Micro Servo Winch

With up to 179 oz of torque, this brushless micro servo packs one heck of a punch. It's smart too, which allows you to program this servo for either standard servo or winch duty with our optional programmer.

Features:

• High Torque High Speed
• Brushless Servo / Winch Fully Programmable, REEFS LINK required for Programming
• Magnetic Angle Sensor
• Pulse Width Modulation Control
• Temperature Rating: -15C ~ +70C

Specifications:

• Voltage 6-8.4V/ Internal: Metal & Steel Gears
• CNC Aluminum Casing; Metal & Steel Gears; Bearing Type: 2BB
• Unload Current: 150/180/240/300mA @ 4.8V/6.0V/7.4V/8.4V; Load Current:1.6/2.0/2.2/2.4A @ 4.8V/6.0V/7.4V/8.4V
• Dimension: (LWH)Weight: .90 x .47 x 1.08 in/23 x 12 x 27.5 mm .74oz / 21g
• Torque: 135 oz-in@ 6.0V / 159 oz-in@ 7.4V / 179 oz-in@ 8.4V
• Speed:.09 sec @ 6.0V / .07 sec @ 7.4V / .06 sec @ 8.4V
