  • RPM R/C Products RPM81562  Front Right Upper & Lower Arms for ARRMA Kraton 8S & Outcast

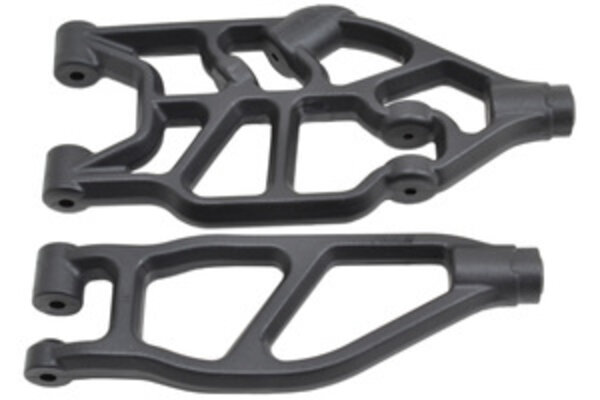

RPM R/C Products RPM81562 Front Right Upper & Lower Arms for ARRMA Kraton 8S & Outcast

SKU: RPM81562
$27.95
Excl. tax

RPM81562

Front Right Upper & Lower A-arms for the ARRMA Kraton 8S & Outcast 8S
The ARRMA Kraton 8S & Outcast 8S are 26 lbs. (12kg.) of high-flying, dirt shredding, jump-killing fun! If your A-arms aren't up to the abuse these massive monsters can dish

The rating of this product is 0 out of 5

(0)

RPM81562

Front Right Upper & Lower A-arms for the ARRMA Kraton 8S & Outcast 8S

The ARRMA Kraton 8S & Outcast 8S are 26 lbs. (12kg.) of high-flying, dirt shredding, jump-killing fun! If your A-arms aren't up to the abuse these massive monsters can dish out, look no further than RPM. These replacement front A-arms are designed with the backyard basher in mind, and can handle some serious abuse and come back for more.

RPM's front lower A-arms have a triple beam style construction designed to spread impact energy across all three beams. Each beam's cross-section is a whopping 5/8" (15.8mm) tall x 3/8" (9.5mm) wide. These massive beams reduce unwanted flex during normal suspension movement, yet allow impact-absorption during those not-so-perfect landings and crashes. They also moved the inner cross brace away from the chassis, eliminating the droop stop entirely. While this may seem counter-intuitive, the test truck's chassis was bent at the droop stops, clearly illustrating that extreme impacts were too much for the chassis plate to handle. After all, there's not much worse than a bent chassis.
RPM front upper A-arms use a dual beam construction where each beam is a massive 1/2" (12.7mm) tall x 3/8" (9.5mm) wide. RPM eliminated the tube shape over the hinge pin to eliminate built-in molding stresses, while beefing up the leading edge hinge pin support to add some much needed strength and durability.

Both upper and lower A-arms are molded with fingernail slots that allow easy access to remove the aluminum support ring (not included) at the pivot ball. Made in the USA from a trademark blend of ultra durable materials, you can't go wrong with RPM!

Tech Notes: RPM A-arms for the ARRMA Kraton 8S & Outcast 8S are sold as one upper and one lower in each kit. One left (#81522) & one right (#81562) will be needed to complete the front end of one vehicle. RPM A-arms replace the upper A-arms from stock ARRMA #ARA330561 and the lower A-arms from stock #ARA330589.

Installation Notes:: Like stock A-arms, RPM Kraton 8S versions are sold without threads. If the pivot ball hole is difficult to thread using the pivot ball, RPM recommends thread tapping (tap not included) the hole for 3-4 threads, but do not tap any further. Additional cut threads will negate the thread-locking capability of the materials.

Front Right Upper & Lower A-arms for the ARRMA Kraton 8S & Outcast 8S
