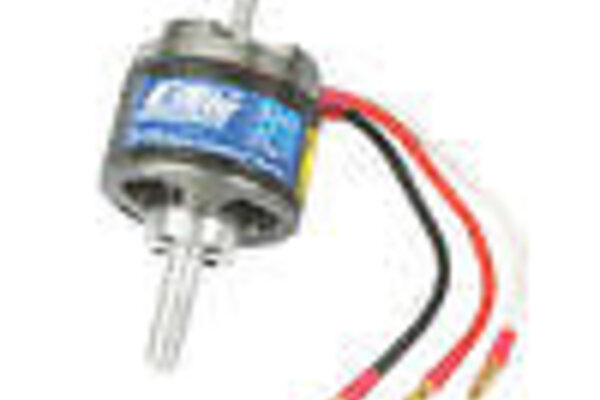

EFLM4090A Power 90 Brushless Outrunner Motor 325Kv
Power 90 Brushless Outrunner Motor, 325Kv: 4mm Bullet
Availability: | Out of stock |
Power 90 Brushless Outrunner Motor, 325Kv: 4mm Bullet
Features
- High torque, direct drive alternative to inrunner brushless motors
- Ideal for models requiring up to 1800 watts of power
- Ideal for 3D airplanes weighing up to 10 lb (4.5 kg)
- External rotor design for better cooling
- Slotted 14-pole outrunner design
- Equivalent to or surpassing the power of a 90-size, 2-stroke, glow engine for sport and scale airplanes weighing 8 to 13 lb (3.6 to 5.9 kg)
- Includes mount and mounting hardware with two 10mm prop shaft adapters tapped out for 8-32 threads
- High-quality construction with ball bearings and hardened 6mm steel shaft
Overview
Key Features
- Equivalent to or surpassing the power of a 90-size, 2-stroke, glow engine for sport and scale airplanes weighing 8 to 13 lb (3.6 to 5.9 kg)
- Ideal for 3D airplanes weighing up to 10 lb (4.5 kg)
- Ideal for models requiring up to 1800 watts of power
- High torque, direct drive alternative to inrunner brushless motors
- External rotor design for better cooling
- High-quality construction with ball bearings and hardened 6mm steel shaft
- Includes mount and mounting hardware with two 10mm prop shaft adapters tapped out for 8-32 threads
- Slotted 14-pole outrunner design
Needed To Complete
6S–8S Li-Po or 18-26 Ni-MH /Ni-Cd
16x8 to 18x8 electric props
85A High Voltage Brushless ESC
Overview
Designed to deliver clean and quiet power equivalent to or surpassing the power of a 90-size 2-stroke glow engine for sport and scale airplanes weighing 8 to 13 pounds (3.6 to 5.9 kg), 3D airplanes up to 10 pounds (4.5 kg), or models requiring up to 1800 watts of power. It will provide excellent 3D performance for the Hangar 9 Frenzy 100 ARF, ShowTime 4D 90 ARF, Funtana X 100 ARF and other similar class models. The Power 90 also provides great power and performance for the Seagull Ultimate Bi-Plane 90 ARFs.
Specifications
- Adjustable Timing
- Yes
- Bushing Or Bearing
- Bearing
- Connector Type
- 4mm Bullet
- Idle Current (Io)
- 2.00A @ 10V
- Motor Design
- Outrunner
- Motor Type
- Brushless
- Outer Diameter
- 2.20 in (56mm)
- Recommended Prop Range
- 16x8 to 18x8
- Resistance
- 02 ohms
- RPM/Volt (Kv)
- 325Kv
- Shaft Diameter
- 6mm (.24 in) (Includes two 10mm threaded prop shaft adapters with 1.5 pitch)
- Voltage
- 6S - 8S LiPo
- Wire Gauge
- 13 AWG
