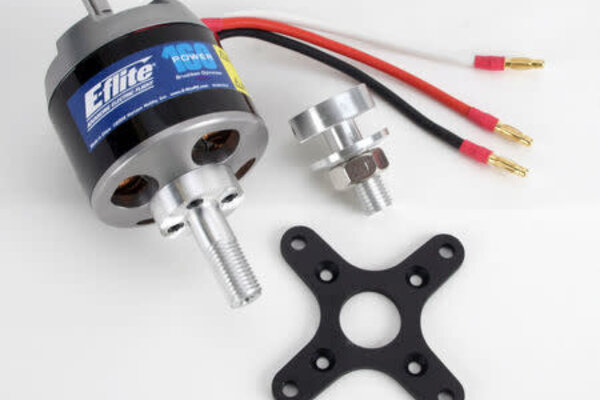

EFLM4160A Power 160 Brushless Outrunner Motor, 245Kv
Power 160 Brushless Outrunner Motor, 245Kv: 4mm Bullet
Availability: | Out of stock |
Power 160 Brushless Outrunner Motor, 245Kv: 4mm Bullet
Features
- Ideal for 3D airplanes up to 15 lb (6.8 kg)
- High-quality construction with ball bearings and hardened 8mm steel shaft
- Includes mount and mounting hardware
- External rotor design for better cooling
- High-torque alternative to inrunner brushless motors
- Includes two 12mm prop shaft adapters tapped out for 10–32 threads
- Slotted 14-pole outrunner design
- Ideal for models requiring up to 2700 watts of power
- Equivalent to or surpassing the power of a 160-size, 2-stroke, glow engine for 12–20 lb (5.4–9 kg) airplanes
Overview
Key Features
- Equivalent to or surpassing the power of a 160-size, 2-stroke, glow engine for 12–20 lb (5.4–9 kg) airplanes
- Ideal for 3D airplanes up to 15 lb (6.8 kg)
- High-torque alternative to inrunner brushless motors
- Includes mount and mounting hardware
- External rotor design for better cooling
- High-quality construction with ball bearings and hardened 8mm steel shaft
- Includes two 12mm prop shaft adapters tapped out for 10–32 threads
- Ideal for models requiring up to 2700 watts of power
- Slotted 14-pole outrunner design
Needed To Complete
75A-110A HV brushless ESC
9S–10S Li-Po or 28- to 32-cell Ni-MH/Ni-Cd
18x8 to 20x10 prop
Overview
The Power 160 is designed to deliver clean and quiet power equivalent to or surpassing the power of a 160-size 2-stroke glow engine for sport and scale airplanes weighing 12 to 20 pounds (5.4 to 9 kg), 3D airplanes up to 15 pounds (6.8 kg), or models requiring up to 2700 watts of power.
It provides excellent power for the popular 27% scale aerobatic models such as the Hangar 9 Extra 260, scale performance for the Hangar 9 P-47D Thunderbolt 150 ARF, and extreme performance for models like the famous Ultra Stick Lite.
Specifications
- Adjustable Timing
- No
- Bushing Or Bearing
- Bearing
- Connector Type
- 4mm Bullet
- Idle Current (Io)
- 1.45A @ 10V
- Motor Design
- Outrunner
- Motor Type
- Brushless
- Recommended Prop Range
- 18x8 to 20x10
- RPM/Volt (Kv)
- 245
- Shaft Diameter
- 8mm (.30 in) (Includes two 12mm threaded prop shaft adapters with 1.5 pitch)
- Voltage
- 33.3–38.4
- Wire Gauge
- 13 AWG
