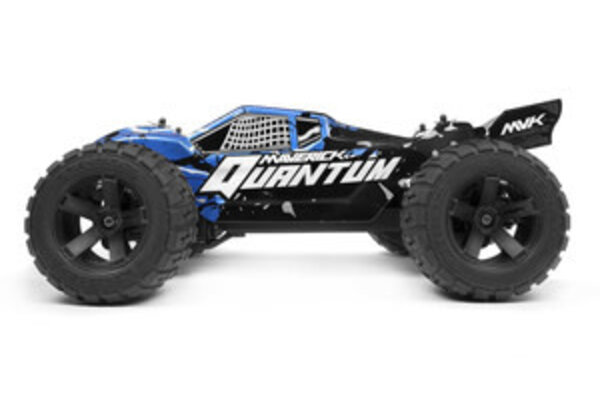

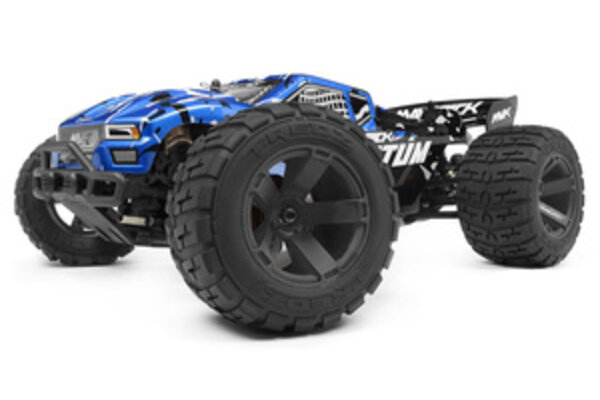

The Maverick Quantum XT is a rugged 4WD Shaft-Driven, low slung dirt truck built to tear up any terrain and cause a splash in its super eye-catching livery! With independent Double Wishbone Suspension, Oil Filled Adjustable Coilover Shocks and Tough Metal 4-Gear Differentials Front & Rear, no amount of dirt or jumps will stand in your way!

Pushing the boundries of quality and performance and reaching heights never before seen, the whole range of Quantum kits benefit from a Molded Tub Chassis with Hex Pattern Reinforcement, oversized 2.8" wheel design and an adjustable wheelie bar fitted as standard.

With the Maverick Quantum XT you not only get a powerful 4WD truck with more than enough speed to wow yourself and your friends - it's also in a tough enough package to withstand plenty of bumps and crashes along the way!

UNLEASH THE BEAST FOR SOME CRAZY ACTION!

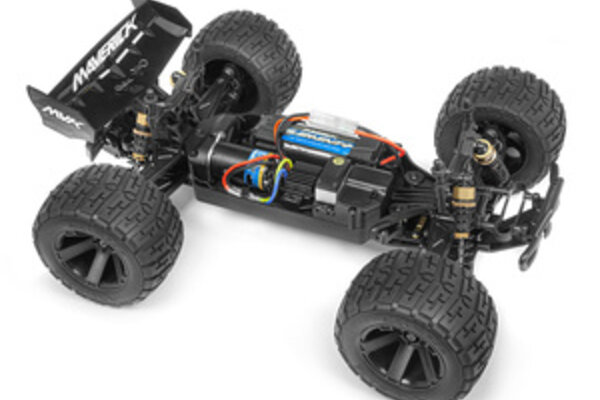

The Quantum XT comes preloaded with the MM-550 15T Brushed electric 550 high torque motor powering a tough shaft drivetrain spinning all 4 wheels for awesome 4WD action. While the waterproof ESC, water-resistant servo and gear cover mean the fun keeps coming and water or debris won't stand in your way!

SUPER-CONVENIENT CHARGING ON THE GO!
Everything you need to get your Quantum XT up and running is included in the box with a 7.2V 2000mAh Maverick Element + NiMH battery pack and super-convenient Delta-Peak USB charger! Meaning you can charge your RC car battery with virtually any mobile phone wall charger!

Features:

• MM-550 15T Brushed electric 550 high torque motor
• MSC-30BR-WP forward/reverse waterproof speed control with 12-turn brushed motor limit
• LiPo-compatible speed controller (see manual for instructions how to change between NiMH & LiPo modes) with LiPo safety cut-off
• 2000mAh Ni-MH battery included with standard white battery plug
• MS-06WR high-strength water resistant steering servo
• MTX/MRX-244 2.4GHz transmitter and receiver with built-in failsafe
• Molded Tub Chassis with Hex Pattern Reinforcement
• Fully adjustable suspension
• Oil-filled rebuildable shocks with coil-over springs
• Aluminum gold anodised shock tops
• Independent Double Wishbone Suspension
• Tough C-hub front steering knuckles
• Tough efficient 4wd shaft drivetrain
• Complete Set of Ball Bearings
• Pre-cut body factory-finished
• Fully adjustable turnbuckles all round
• Front and rear molded bumpers
• Dual Point Bell Crank Steering System With Integrated Servo Saver
• Aluminum gold anodized motor heatsink
• Gear cover to keep debris away from the spur gear

Specifications:

• Length: 475mm
• Width: 365mm
• Height: 200mm
• Wheelbase: 285mm
• Weight: 2.10kg
