DYNF0002 LiPo Voltage Checker/Warning Alarm
LiPo Voltage Checker Warning Alarm
Item No.
Dynamite - DYNF0002







    Item No.
Dynamite - DYNF0002
| Availability: | Out of stock |
LiPo Voltage Checker Warning Alarm
Item No.


        Dynamite - DYNF0002

Product Details
Quick Links
MANUALS & SUPPORTKey Features
- Protects aircraft from unwanted landings and batteries from over-discharging
 - Programmable voltage threshold
 - Ideal for all electric vehicles, boats, and aircraft using LiPo batteries
 - Protects drivers from over-discharging LiPo's when using an ESC that doesn't have Low Voltage Cutoff
 - Monitors a batteries low voltage down to the cell level
 - Unit checks and displays the cell count, voltage of the overall pack and then each cell individually up to 8S
 - Compatible with JST-XH type balance connectors
 - Large, digital LED display
 - High pitched low voltage warning buzzer
 - Compatible with 1-8s Lipo/Li-ion/LiMn/Li-Fe
 - Voltage detection precision to 0.01V
 - Cell voltage display range: 0.5V-4.5V
 - Pack voltage display range: 0.5V-36V
 - Low voltage alarm mode for 2-8S
 - Alarm set value range: OFF-2.7V-3.8V
 - When the cell voltage is below the set value, the buzzer will sound along with red LED light, default value 3.3V

Overview

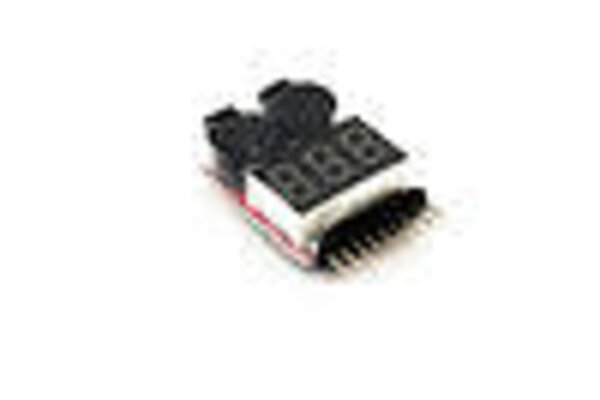

This is the Dynamite® LiPo Voltage Checker/Warning Alarm.
Product Specifications
| Accessory Type | Meters & Checkers |
| Product Height | 0.35 in (9mm) |
| Product Width | 0.94 in (24mm) |
| Product Length | 1.53 in (39mm) |
| Field Equipment | Voltmeters |
