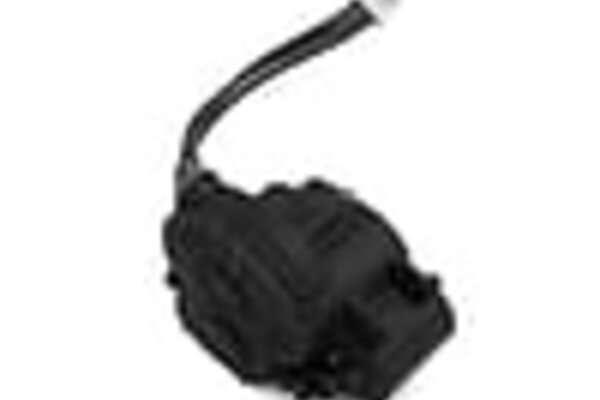

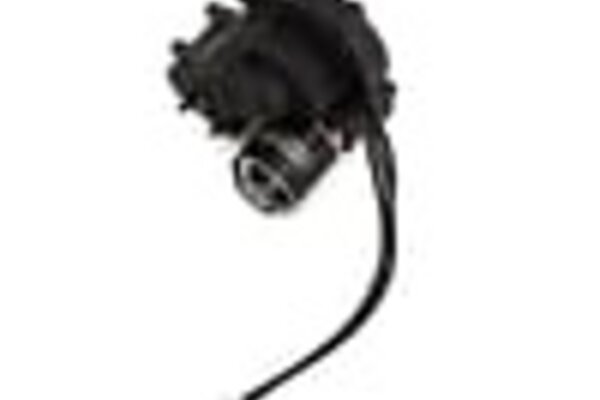

Furitek FCX24 Transmission Kit with Micro Komodo Brushless System. This features a pre-built transmission complete with the Micro Komodo motor installed and ready to be dropped into the FMS FCX24 chassis. The Micro Komodo features an abundance of torque giving the FCX24 plenty of power to conquer any obstacle that stands in it's way. This drop in motor/transmission combo is an excellent addition to the FCX24 increasing all around performance.
Features:
- 12 Pole hi-torque motor design
- Super thin (0.2 mm) stator laminations
- Japanese NMB --High RPM ABEC5 bearings
- Precision balanced rotor for best reliability and maximum RPM
- CNC machined 6061 T6 billet aluminum heatsink can
- Precision engineered for maximum energy conversion
- High purity and higher temperature single copper windings
- Excellent heat dissipation for maximum efficiency
Specifications:
kV(RPM/Motor): 3450
No-load current: 0.7A @ 10V
Watt: 120W
Battery: 2-3S
Resistance: 0.16Ohms
Max Current: 10A
Slot/Pole: 12
Motor size: 15.5x20.6mm
Shaft: 1.5x6mm
Weight: 17.5g
Includes:
- (1) FCX24 Transmission Kit
- (1) Micro Komodo Brushless System
