COR59060

Team Corally CT2R 2-Channel 2.4GHz Digital Radio Control System

For use with Asuga Racing Buggy, and other RC surface applications.

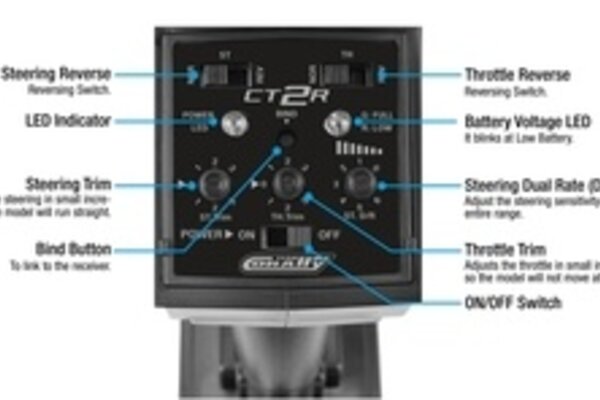

Features:

• 2CH Transmitter with 3-channel receiver.
• The device has an integrated 2.4GHz antenna.
• Steering DUAL RATE (D/R).
• Steering and throttle Trims.
• Steering and throttle Reverse
• Fail Safe

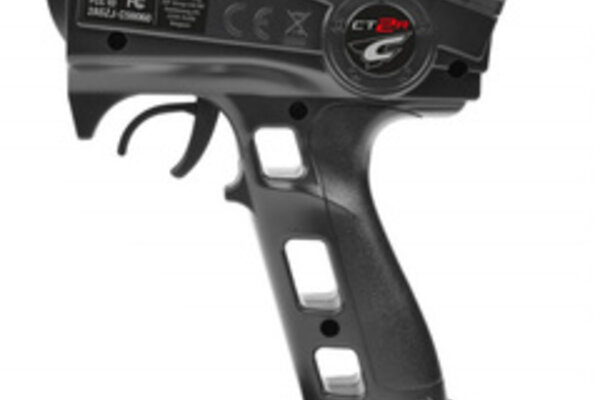

Transmitter Specifications:

• Model Type: Car/Boat
• RF power: <20dBm
• Modulation: GFSK
• Sensitivity: 1024
• Low Voltage Warning: <4.5V
• Power: 6 VDC (1.5V AA x4)
• Range: 400m
• Size: 220 x 150 x 100 mm
• Weight: 328 g
• Certificate: CE0678 FCC

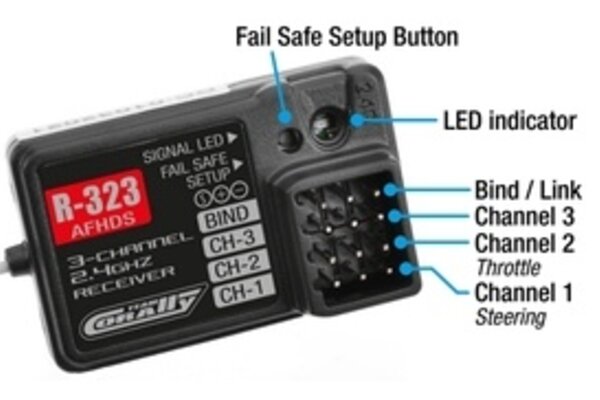

Receiver Specifications:

• Channels: 3
• Model type: car/boat
• Frequency band: 2.4 GHz
• Modulation: GFSK
• Sensitivity: 1024
• RF receiver sensitivity: -100 dbm
• Power: 4.5-7.2 vdc
• Weight: 5 g
• ANT length: 26 mm

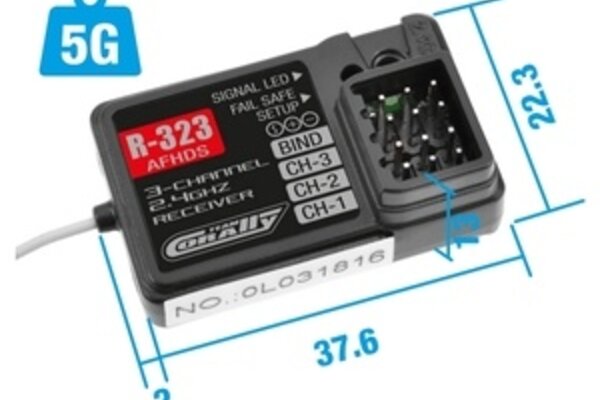

• Size: 37.6 x 22.3 x 13 mm
• Certificate: CE0678 FCC

Transmitter Manual

Click on image to enlarge

Click on image to enlarge

Click on image to enlarge

Click on image to enlarge
