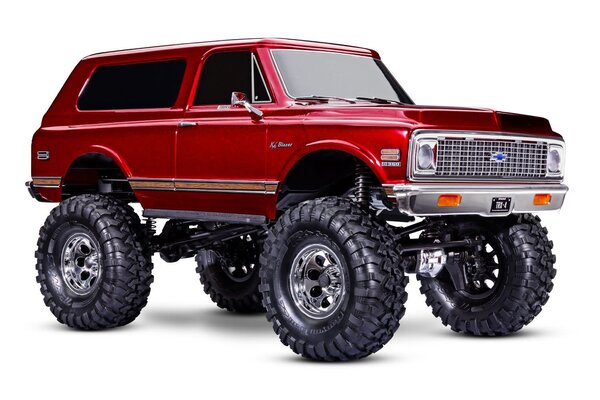

92086-4 TRX-4 Chevrolet K5 Blazer High Trail Edition

FEATURES
- Officially Licensed 1979 Chevrolet^® K5 Blazer Body
  - Scale details: deep-inset front grille, chrome bumpers, side mirrors, door handles, side trim and wipers
  - LED-ready headlights, tail lights, and side markers
  - Authentic decal sheet
  - Full Nylon composite wheel wells and floor pans
- Clipless Body mounting
  - Clipless design for smooth body appearance
  - Rugged internal body cage for added rigidity
- Trail-tuned XL-5™ HV Waterproof Electronic Speed Control
  - Fully waterproof design
  - Five drive profiles

    Sport Mode — forward / brake / reverse

    Race Mode — forward / brake / no reverse

    Training Mode™ - 50% forward / 100% brake / 50% reverse (patented)

    Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral

    Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake
  - Traxxas EZ-Set^® one-button setup
  - Large, efficient heat sink
  - Wide voltage latitude 6–7 cell NiMH (7.2–8.4 V) and 2–3s LiPo (7.4–11.1 V)
  - Two stage low voltage protection (LVD)
- Titan^® 550 Motor
  - Powerful Titan 21T reverse rotation motor with internal cooling fan
  - Precision, preset gear mesh adjustments
  - Motor retention separate from gear mesh
- Portal Axles
  - Increase ground clearance
  - Eliminate torque twist
  - Steel gears
  - Improve axle geometry and reduce strain on driveshafts
- Drivetrain
  - Full-time shaft driven 4-wheel drive
  - Tough 6 mm stub axles
  - Steel front CV driveshafts
  - Hardened steel rear axle shafts
  - Remote locking steel gear differentials with cable-actuation
  - Steel gear transfer case
- Factory-Installed Long Arm Lift Kit
  - Increases ground clearance over 1″
  - Maintains precise steering geometry
  - Accommodates oversize 2.2″ wheels and tires
- TQi™ 2.4 GHz Radio System
  - 4-channel transmitter
  - 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
  - Compatible with optional TQi Traxxas Link Wireless Module (6511) to access full Traxxas Link app functionality (sold separately)
  - Automatically stores and loads settings for up to 30 Traxxas Link enabled models
  - Exclusive Cruise Control feature for extended trail driving
  - Adjustable steering and throttle sensitivity (exponential)
  - Adjustable steering and throttle endpoints
  - Patented waterproof receiver box with easy-access plug
- Reinforced Steel Ladder Frame
  - Full-length 1.5 mm thick steel frame rails
  - Bumpers adjust fore and aft
  - Rugged rock rails adjust for width
  - Wire routing clips integrated into frame rails
- Innovative Battery Compartment
  - Hinged battery strap allows quick and easy battery access
  - No pins to lose
  - Accommodates different height batteries
  - Accepts full-size long battery packs
  - Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
  - Secondary front battery tray accepts smaller 1/16 scale batteries (with optional strap)
- Transmission
  - Two speed high/low range with remote shifting
  - Dual horizontal shafts
  - Twin friction plate slipper clutch
  - Easily removed for servicing
- Steering
  - Chassis mounted 2075X metal gear digital servo
  - Superior 45° steering angle
  - Direct steering (no servo saver)
  - Steering geometry corrected for bump steer
- Suspension
  - Front — 3 link with panhard
  - Rear — Triangulated 4 link
  - Heavy-duty rod ends with steel hollow balls
  - 5 mm diameter steel link rods with 4 mm threaded ends
- Extended Aluminum GTS Shocks
  - Oil-filled coilover GTS shocks exclusive to TRX-4 chassis
  - Extra-long aluminum bodies for greater articulation
  - Silver-anodized aluminum bodies
  - Threaded bodies with collars easily adjust ride height
  - Silky smooth damping for the toughest trails
  - O-ring cap seal and dual X-ring shaft seals
- Oversize Wheels and Tires
  - 2.2″ chrome mag wheels wheels with hub inserts
  - Pre-mounted 2.2″ Canyon Trail tires with trail-tuned foam inserts
  - Trail tuned S1 rubber compound
  - 12 mm steel hex
- Sealed Ball Bearings
- Hex hardware with Rust-Resistant Black Oxide Coating
- Requires Battery and Charger (Sold Separately)
