  • Futaba FUT01004395-3  7PXR 7-Channel 2.4GHz T-FHSS Radio System w/ R334SBS

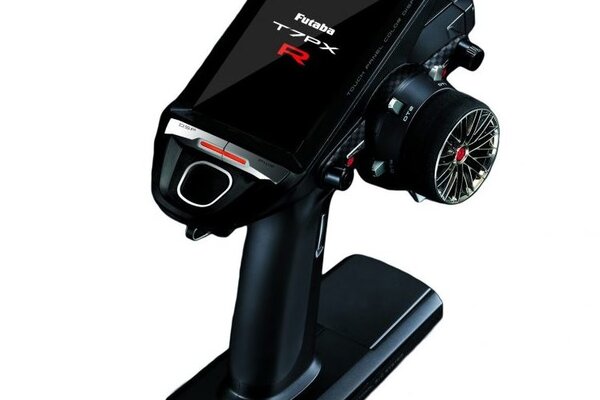

Futaba FUT01004395-3 7PXR 7-Channel 2.4GHz T-FHSS Radio System w/ R334SBS

SKU: FUT01004395-3
$699.99
Excl. tax

FUT01004395-3

7PXR 7-Channel 2.4GHz T-FHSS Radio System w/ R334SBS Receiver

The rating of this product is 0 out of 5

(0)

Transmitter Specifications:
-2.4 GHz band/ -Transmitting RF power output: 100 mW EIRP
-T-FHSS SR/T-FHSS/S-FHSS/FASST-C2
-Ni-MH NT5F1800B (6 V)
-LiFe FT2F1700BV2 (6.6 V)
-350 mA or less (When the T-FHSS, Vibration off, back lighting on)
*When you turn on your 7PXR, bright dots may appear on your screen display. Your display contains an extremely large number of TFT and is manufactured using high-precision technology. Any bright dots that may appear on your display are intrinsic of the TFT manufacturing technology.

Receiver Specification:
-Receiver R334SBS
-Size: 1.33 in x 0.88 in x 0.44 in (33.9 mm x 22.3 mm x 11.3 mm)
-Weight: .26oz (7.5g)
-Operating Voltage: DC 3.7V-7.4V

Includes:
-T7PXR Transmitter
-R334SBS
-Dry Battery Holder
-Wheel Offset Adapter
-Wheel Adapter 32deg
-Large Diameter Steering Wheel (54 mm)
-Trigger Brake Lever (Narrow Type)
-Miniature Screwdriver
-Screen Protector
-3 x Receiver Plugs

Features:

  • T7PXR has an HVGA 4.3 inch, full-color, backlit LCD touch screen. The screen is transflective which enables both indoor and outdoor visibility.
  • In addition to the T-FHSS telemetry system, we added a T-FHSS SR (Super Response) system that increased processing speed to further improve response. (SR system does not support telemetry function.)
  • Software can be updated by microSD card. Model data can also be saved in a microSD card. In addition, telemetry log data can be saved.
  • Model names can use up to 15 letters, numbers, and symbols, so that logical names may be used. A model memory with different setups can be created by using the model copy function.
  • It is possible to update the T7PX itself in the future by NFC communication.
  • A switch with both dial (DL1) and pus switch (PS6) functions.
  • Brake mixing of the front and rear wheel of 1/5 gas power cars and other large cars can be adjusted independently.
  • This function can be used with crawlers and other 4WS type vehicles.
  • The sensitivity of Futaba car rate gyros can be adjusted from the T7PXR.
  • LED lighting and flashing control using our CPS-1 channel power switch can be matched to steering and throttle operation by switch only.
  • This dedicated function allows you set up the Link software so that your T7PXR can control variable frequency and other data changes in Futaba speed controllers (ESCs): MC960CR, MC950CR, MC850C, MC851C, MC602C, MC402CR, etc.
7PXR / FUTABA 7PXR / T7PXR
